Nikon hardware information

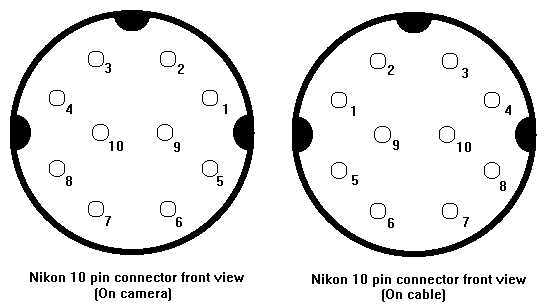

10 Pin connector.
|
1: Rx, Data receive. |
6: SGnd, Signal Gnd. |
|
2: VBAT1, Battery voltage. |
7: PGnd1,Power Gnd. |
|
3: +Vcc,+5V regulated. |
8: Tx, Data transmit. |
|
4: RLS, Release signal. Active low, fully depressed release button. |
9: WUP, Activate signal. Active low, half depressed release button (Normally at 6 V),@ 1.5 V (one diode drop): meter on,@ 0 V (ground): focus on. |
|
5: IO1, Shutter Release Pulse to 2nd Camera?? |
10:NC, Not connected. |
MC30 Remote cord.
Pin 9 Wup
Pin 4 RLS
Pin 6 SGnd (common)
Button: To release the shutter you first have to apply the WUP signal and then the RLS signal
More to come!
I do think this information is ok, but please don't blame me if your camera blows up on you!
